MiSens

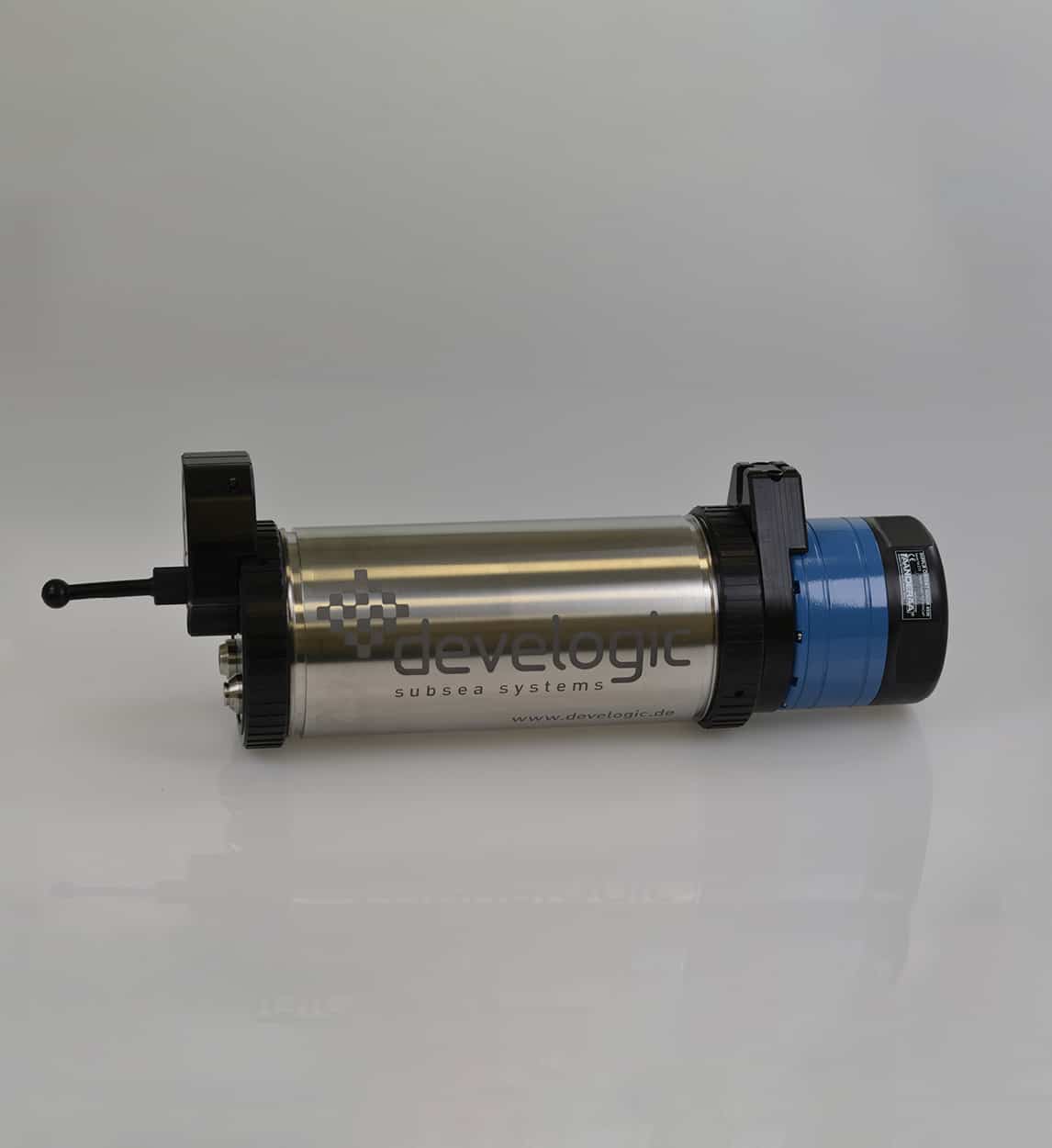

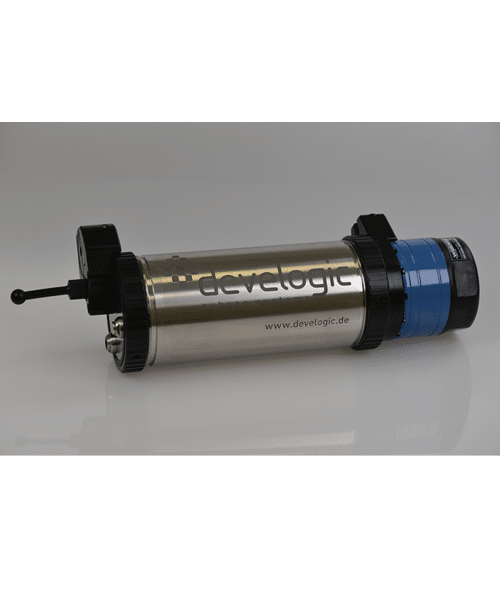

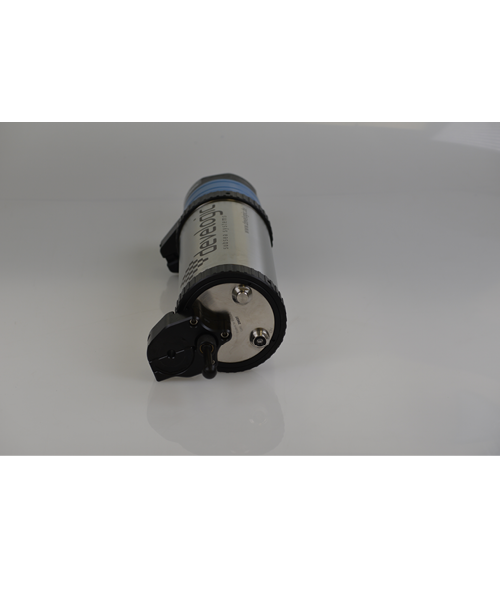

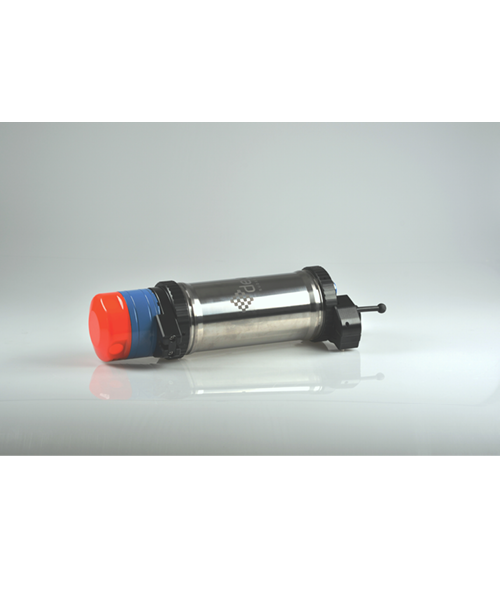

The develogic MI.Sens modular multiparameter sensor was developed in close collaboration with Aanderaa with the purpose to provide a flexible sensor system with real-time data transmission through a jacketed steel wire mooring line. Installation on the steel wire mooring line is easily accomplished with the integrated mooring clamp and split inductive coupler.
Large battery capacity and low power consumption allows for long term deployments. Instrumentation can be activated and de-activated by the integrated magnetic power switch, which also signals system status information. It also comes with full compatibility with Seabird™ inductive mooring line communication. Up to 98 devices can be installed on a single mooring.
The system is ideally complemented with one of our gateway buoy systems – e.g. the cost efficient MI.Sat buoy or one of the larger spar buoy solutions. Also available is a range of swivels with electrical feedthrough ideally suited for inductive mooring applications.
Features
- Operational depth MI.Sens 3000/MI.Sens 6000: 3,000m/6,000m
- Sensor supply voltage range: 5-12V
- Battery capacity Alkaline: up to 420 Wh
- Battery capacity Lithium: up to 1,200 Wh
- Maximum sensors: 7
- Storage capacity up to 512 GB
- Integrated pressure sensor
- Coasted steel wire diameter: 6mm-22mm
- Sensor interfaces: 5 x RS232 / 2 x RS232 / RS422
Applications
- The system is ideally complemented with one of our gateway buoy systems
- Measuring multiple parameters with real-time data at depth
